KEB Application Drives

Name: KEB Application Drives
Brand: LAKSHMI ELECTRO CONTROLS & AUTOMATION
Price: 90000-2500000 INR
Availability: InStock

Price 90000-2500000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

KEB Application Drives Specification

Shape
Rectangular

Overheating Protection
YES

Operating Temperature
-10C to 45C

Power Factor
>0.95

IP Rating
IP65

Connector Type
Screw Terminal

Mounting Type
Wall Mount / Panel Mount

Surface Finish
Anodized

Insulation Material
Polyamide

Humidity %
95% RH max

Efficiency
>90%

Feature
High Performance, Reliable Operation

Product Type
AC Drive

Application
Industrial Automation

Protection Level
IP65

Frequency (MHz)
50-60 Hz

Rated Voltage
380-480V

Energy Consumption
Low

Output Type
PWM (Pulse Width Modulation)

Color
Black

Dimension (L*W*H)
250 x 125 x 140 mm

Weight
2.7 kg

Size
Standard

Input Voltage
380-480 VAC

Phase
Three Phase

No Of Poles
4

Connection Type
Panel Mount

Material
Aluminium Body

Motor Compatibility
Induction, Servo Motors

Storage Temperature
-20°C to 60°C

Braking Unit
Integrated

Software
KEB COMBIVIS supported

Noise Level
<60 dB

Display Type
LCD digital display

Control Method
Vector Control / V/F Control

Drive Range
0.75 kW to 45 kW

Cooling Type
Forced Air Cooling

Overload Capacity
150% for 60 seconds

Communication Interface
MODBUS RTU, CANopen, EtherCAT

KEB Application Drives Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
100 Units Per Day

Delivery Time
1 Week

Sample Policy
Within a certain price range free samples are available

About KEB Application Drives

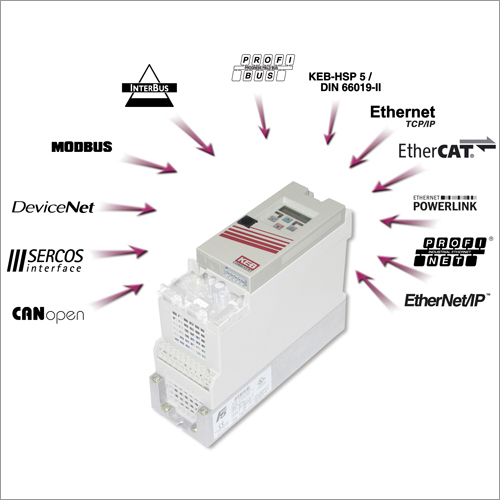

KEB Drive Supports for all Following Communication by changing one Single Operator.

* Prof bus operator, part no. 00F5060-3000 / -3100

slave connection up to 12,5 MBaud,
IN/OUT connection D-Sub 9-pole,
service interface for HSP5 adapter

* InterBus operator, part no. 00F5060-4000

InterBus-remote bus
IN/OUT connection D-Sub 9-pole,
service interface for HSP5 adapter

* CAN operator, part no. 00F5060-5010 / -5110

CANopen prof le DS 301 (DS 402),
IN/OUT connection D-Sub 9-pole
service interface for HSP5 adapter
(upon request: version with plug-in terminal strip)

* Sercos operator, part no. 00F5060-6001

SERCOS IN/OUT/FSMA connection
service interface for HSP5 adapter

* DeviceNet operator, part no. 00F5060-7000

IN/OUT connection open entry,
service interface for HSP5 adapter

* MODBUS operator, part no. 00F5060-A000

D-Sub 9-pole (female) connection
service interface for HSP5 adapter

* Ethernet operator, part no. 00F5060-8000

IEEE 802.3 10Base-T (10 Mbaud)
2 x RJ45 connection
service interface for HSP5 adapter

* EtherCAT operator, part no. 00F5060-F000

2 x RJ45 connection
service interface for HSP5 adapter

* Powerlink operator, part no. 00F5060-H000

2 x RJ45 connection
service interface for HSP5 adapter

* Profi net operator, part no. 00F5060-L100

2 x RJ45 connection
service interface for HSP5 adapter

* EtherNet/IP operator, part no. 00F5060-M100

2 x RJ45 connection
service interface for HSP5 adapter

Advanced Motor Control for Industrial Applications

KEB Application Drives are designed to meet the rigorous demands of industrial automation. Employing state-of-the-art vector control and V/F control, these drives achieve high precision and smooth operation across a variety of motor types, including both induction and servo motors. Their robust construction and advanced features make them a reliable choice for optimizing machine performance and productivity.

Versatile Connectivity and User-Friendly Interface

Supporting MODBUS RTU, CANopen, and EtherCAT communication protocols, the KEB drive seamlessly integrates into diverse industrial networks. Its intuitive LCD digital display provides clear real-time feedback and effortless parameter adjustments. This ease of use simplifies the setup and daily operation, catering to both experienced engineers and on-site technicians.

FAQs of KEB Application Drives:

Q: How does the KEB Application Drive ensure reliable performance in industrial environments?

A: The drives IP65-rated anodized aluminium housing offers excellent protection against dust and moisture, making it suitable for harsh industrial conditions. Forced air cooling and built-in overheating protection further enhance its reliability, ensuring consistent and safe operation even under demanding loads.

Q: What types of motors are compatible with this drive, and how is selection handled?

A: The drive supports both induction and servo motors, accommodating a broad range within 0.75 kW to 45 kW. Motor selection can be tailored according to your application needs and is easily configured using the drives intuitive LCD digital display and KEB COMBIVIS software.

Q: When should the integrated braking unit be utilized within an application?

A: The integrated braking unit is designed for situations where rapid deceleration or frequent stop-and-go movements are required, such as in material handling or dynamic manufacturing processes. It helps safely dissipate surplus energy, improving overall efficiency and control.

Q: Where can this drive be installed, and what are the recommended mounting options?

A: Thanks to its IP65 rating and sturdy construction, the drive can be installed in industrial locations prone to dust or splashing water. It offers flexible wall or panel mounting, making it adaptable to various machinery layouts and control cabinet designs.

Q: What is the process for connecting the drive to a control system?

A: Installation involves securely panel-mounting the drive and connecting the power and motor cables to the screw terminals. Communication lines can be established using MODBUS RTU, CANopen, or EtherCAT protocols as required. The drive parameters are then set via the LCD display or KEB COMBIVIS software.

Q: How does this drive benefit energy efficiency and operational costs?

A: Operating at greater than 90% efficiency and featuring a power factor over 0.95, the KEB drive ensures minimal power loss and reduced energy consumption. This leads to lower operational costs and promotes sustainable industrial production.

Q: What measures are in place to protect the drive and connected motors from overheating?

A: The drive incorporates an advanced forced air cooling system, built-in overheating protection, and real-time temperature monitoring. These features work together to prevent component damage and ensure longevity, even during extended operation.
