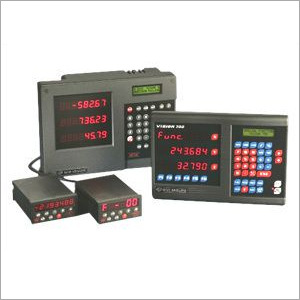

Digital Readouts

Digital Readouts
Digital Readouts
Product Code : 02
Product Description

We are one of the leading manufacturers, exporters and suppliers of a quality assortment of Digital Readouts. The offered device is a very powerful micro-controller which manages and processes all the information transmitted by the transducer or entered by the user and also increases the production performance of the machine on which it is installed. Manufactured at our hi-tech manufacturing unit under the supervision of our adroit professionals, the Digital Readouts is available with us in varied specifications as per client's needs at economical prices.

Features:

  • Compact design
  • Universal software for any kind of machine tool
  • Able to read coded references
  • Perfect finish



Digital Readouts

A very powerful micro-controller manages and processes all the information [position, calculation, etc.] trasmitted by the transducers or entered by the user. Having such a highly evolved but user-friendly digital Readout means increasing the production performance of the machine on which it is installed considerably.

  • Compact designed Digital Readout.
  • Diagnostic of readout and optical scale (internal cleaning  and/or internal defects).
  • Reading of coded references  (in combination with NCS scale).
  • Universal software for any kind of machine tool .
  • Software upgrade through serial port.
  • Program store for 1000 blocks.
  • Optional: Flush-mounted version (on a panel).

Combined to appropriate transducers (rotary encoders or linear scales), the ME 510 solves all problems tied to counting and displaying of length or thickness measures, as well as of machined pieces number, which can arise on any type of manufacturing machine.


The ME 510 displays up to a maximum of 6 figures, with decimal point which can be set according to the need. Data saving at instrument turning off is assured on internal re-writable memory and no buffer battery is therefore required. A correcting factor of the input pulses can be set to obtain the display always matching the actual movements of the machine. Combinable transducers can be: an incremental rotary or linear encoder (linear scale).


The ME 510 offers several different application possibilities: in addition to all machines performing cuttings or machining at a preset size, the ME 510 can be applied in various sectors, from the food sector (e.g. machines for pasta plants to predetermine the quantity of product to work), to the wood sector (e.g. honing machines to check the panel thickness), from steel sheets (e.g. presses to display the ram position or benders to indicate distance between rollers), to the glass (e.g. grinding machines for thickness control), marble (e.g. edge polisher to preset the operation of one head), to the fabric sector (e.g. finishing machines for meter counting with total and partial count)
