Optical Scales SCR 3923

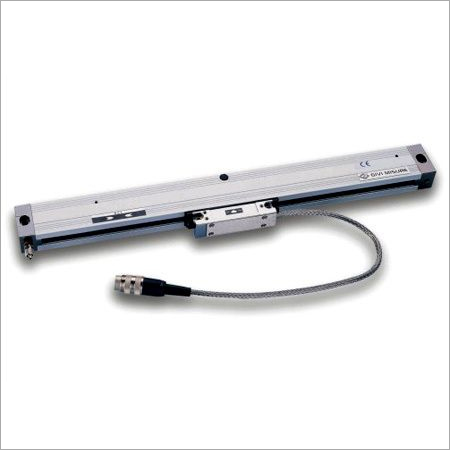

Backed by our years of domain experience, we are offering excellent quality Optical Scales SCR 3923. Suitable for installation on machine-tools, the provided machines assures correct working in heavy conditions and prevents any malfunctions. The offered machines are manufactured utilizing fine grade stainless steel and latest techniques as per the set industry standards under the visionary supervision of our technical experts. Besides, Optical Scales are made available for our customers in four different models at affordable rates.
Measuring Systems for Application on CNC Machines:
The high reliability of this system makes it particularly suitable for installation on machine-tools & assures correct working in heavy conditions. The particular protections used also helps in preventing any malfunctions, avoiding any maintenance as well as reduce servicing needs.
- Scale housing in extruded anodized aluminium TA 16 - size mm 39 x 23 - section 461 mm2 - weight Kg/m 1.245
- Flexible coupling for compensation of dis-alignments and self correction of mechanical hysteresis
- Lip seals for the protection of the internal grating made of rubber elastomeric 70
- Slider set composed by reader head (P) and tie rod (T)
- The housing of circuit is water proof by use of a gasket & steel cover (with incorporated cable clamp)
- Hybrid circuit for generation of signals
- Accurate calibration of signals prevents any further unbalance (calibrated resistors substitute potentiometers normally used)
- Internal gasket for further protection (double barrier prevents any infiltration of pollutants)
- Stainless steel grating (size mm 18 x 0.305 in a single piece also in "modular" scales)
- Grating kept in position by scale housing which leaves it free to expand without deformation in case of faulty installation
- Lateral fixing of the grating
