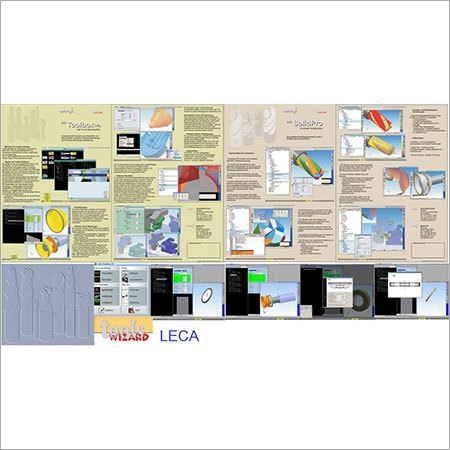

Grinding Software
End Mills Drills Reamers Taps Profile tools Etc
Production and regrinding
The Software supports the production and regrinding of milling drilling and lathe tools
toolkit
provided for a large number of tool geometries
Handling
toolkit
guided by the program through the setup and handling of the workpieces that are to be
processed The Software is organized in three main areas that administer the machine wheel
and tool data
PROFESSIONAL is noted for its clear logical structure The user is automatically
Online Help
Data entry is directly supported by graphical parameter definitions An additional Online
Help can be called at any time
Visualization
toolkit PROFESSIONAL offers 2D and 3D Visualization for tool and wheel data entry areas
as well as in the wheel path calculation Optionally the machine model and the CNC
kinetmatic simulation can also be represented in 3D
Database system
The software has a specially developed database system with timeoptimized access to
workpiece wheel and technology data
The database structure can be appropriately organized to fit user requirements The topdown architecture ensures that the amount of imput data is automatically minimized in
every step of the production process
The complete grinding process including all technology data is recorded in the database
Thereby the perfect reproduction of a previously optimized process is assured
Presettings
The operator can create preset values in the form of tables for often used tool families With
the push of a button the tool can be automatically generated and loaded directly into the
machine
Collision control
The program can be supplied with collision control An analysis of all collision relevant
objects is carried out when the machine code is generated A graphical visualization
facilitates the detailed recording of possible collision situations so that the operator can easily
analyze and correct errors during data entry or wheel setup
Tool probing
toolkit
routines for the different tool geometries Interfaces to external measurement systems are
also implemented
PROFESSIONAL supports all standard probe systems and has its own probingPROFESSIONAL is modularly designed so that customized applications can be
Stepper motors with screws and precision guides
Xaxis travel 300 mm
Yaxis travel 130 mm
Caxis travel 5 180
Aaxis travel
Electronic probe for tool detection and automatic positioning with run out checking
PC with 15 colour display unit
Oiltight casing with Lexan glass and sliding door for tool loadingunloading operations with door lock
Internal light
3colour signaling lamp
Weight 300 kg
Dimensions 900x900x1560 mm
